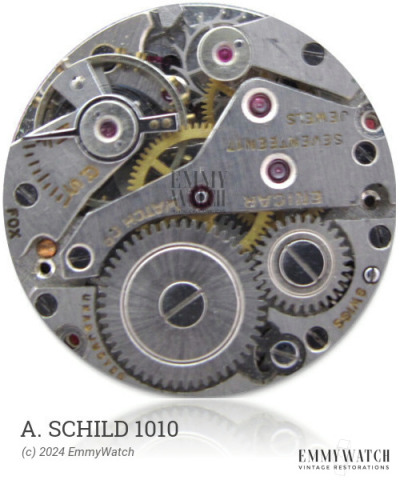

A. Schild 1010
(AS, A Schild)
Ligne: 19'''
Jewels: 18
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1920
Diameter: 43.15 mm
Height: 5.6 mm
Hands: 1.85 x 1.10 / 0.27 mm
The A. Schild 1010 is an open face calibre watch movement with a bimetallic screw balance featuring four adjustment screws. It is equipped with a Breguet hairspring and a beryllium-bronze train. The 540S is functionally designed for stem winding and setting, as well as displaying a sub-second feature. This movement was commonly used during the approximate period of 1920. The 526, 534, 540, and 548 models share similar specifications with the only known differences being in their bridge layouts.
The A. Schild 1010 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.10 x 0.210 x 470 x 16.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
