A Michel 543
Ligne: 16.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 4.2 mm
Hands: 2.00 x 1.15 / 0.27 mm

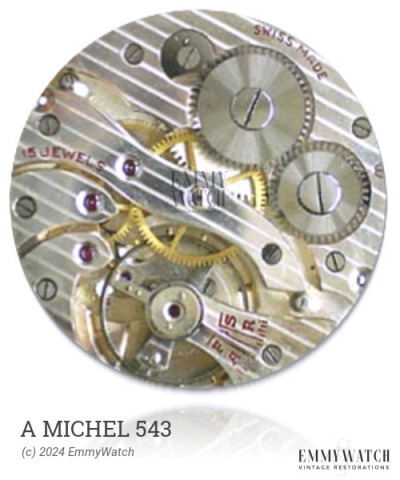

The A Michel 543 is an open face calibre watch movement that features varying bridge shapes. It possibly includes a left-handed ratchet-wheel screw, although further details are not available regarding the differences between other calibres such as 285, 293, 299, 303, 327, 331, 339, 345, and 497. The movement is capable of stem winding and setting, as well as displaying sub seconds. It was commonly used during the approximate period of 1940.
The A Michel 543 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.175 x 440 x 14.5 mm | GR43071 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
