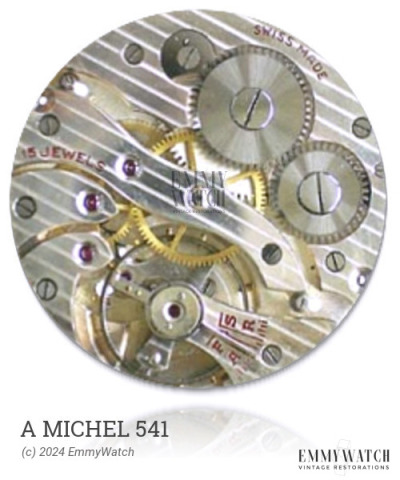

A Michel 541
Ligne: 10.5'''
Jewels: 17/21
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 2.8 mm
Hands: 1.30 x 0.70 mm
The A Michel 541 watch movement is a manual wind mechanism featuring sub seconds functionality. It is accompanied by later samples with different combined settings for the escapement wheel and/or mobile stud carrier. The variations between the 423-427 movements are largely attributed to varying bridge shapes, although specific differences are not known.
The A Michel 541 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4465 | Ordinary/None | Buy staff |
| 4745 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 340 x 9.5 mm | GR2922 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
