Return To ShopWatch Database

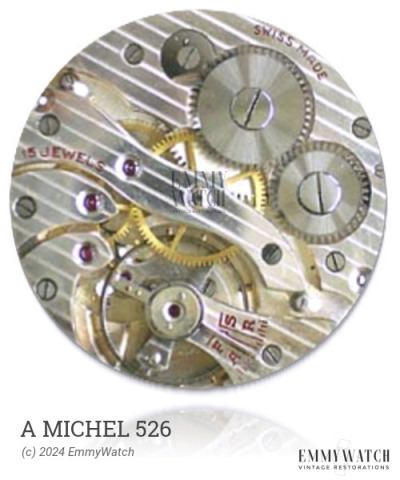

A Michel 526
Ligne: 10.5'''
Jewels: 17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1963
Diameter: 23.7 mm
Height: 4.7 mm
Hands: 1.30 x 0.80 mm
Base: Jaeger Lecoultre 480
The A Michel 526 watch movement is a manual wind mechanical movement that was used during the period approximately 1963. It features a sweep second hand and a date function.
The A Michel 526 features the following functions:
- Date
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.095 x 340 x 9.5 mm | GR3238 | Manual | Buy mainspring |
| 1.30 x 0.098 x 340 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
