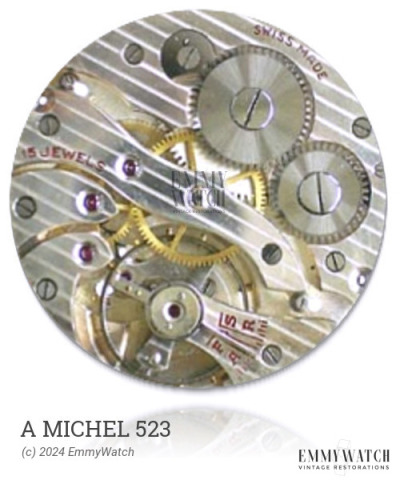

A Michel 523
Ligne: 11.5'''
Jewels: 15/17/19/21
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 26 mm
Height: 4.15 mm
Hands: 1.50 x 0.90 x 0.21 mm
The A Michel 523 is a manual wind mechanical watch movement that features a sweep second hand. It was introduced around 1955 and belongs to a series of movements, including 1081, 1083, 1085, 1087, 1089, 1095, 1097, 1099, 1141, 1143, 1145, 1147, 1155, 1157, 1175, 1177, 1179, 1181, 1183, and 1287, among others, which share similarities that are not specified.
The A Michel 523 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.110 x 290 x 9.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 300 x 9.0 mm | GR4134 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
