A Michel 506
Ligne: 11.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1963
Diameter: 26 mm
Height: 3.1 mm
Hands: 1.30 x 0.80 mm
Base: Favre Leuba 251

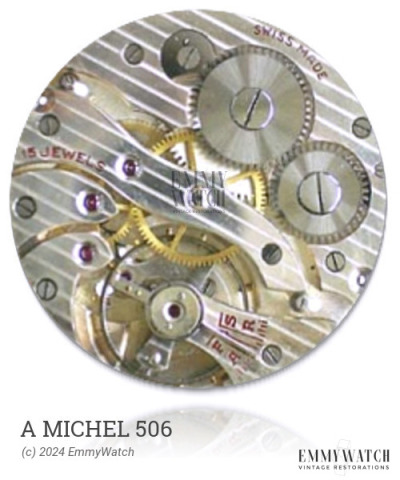

The A Michel 506 watch movement features a balance bridge and utilizes two barrels coupled in parallel. The winding details of this movement can be found in the Favre-Leuba 253 model. Additionally, the movement is equipped with manual wind functionality and includes a date display. This particular movement was commonly used during the period around 1963.
The A Michel 506 features the following functions:
- Date
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.065 x 210 x 6.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| SET BRIDGE | 445/982 | Buy part | |
| STEM, USE 401/552 | 200/1516F | Buy part |
