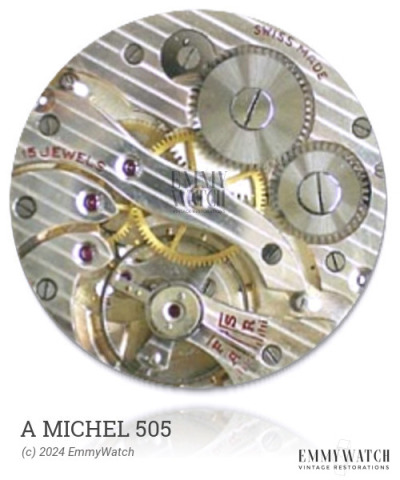

A Michel 505
Ligne: 12'''
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 27.1 mm
Height: 5.0 mm
Hands: 1.66 x 0.88 mm
Base: Kienzle 051N/50
The A Michel 505 is equipped with a pin lever escapement. It features a ratchet on the dial side and a crown mechanism with a rocker bar. This manual wind movement has a date function that can be set by +/-24 hours. The A Michel 505 was commonly used around 1955.
The A Michel 505 features the following functions:
- Date: set by +/-24h
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.130 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
