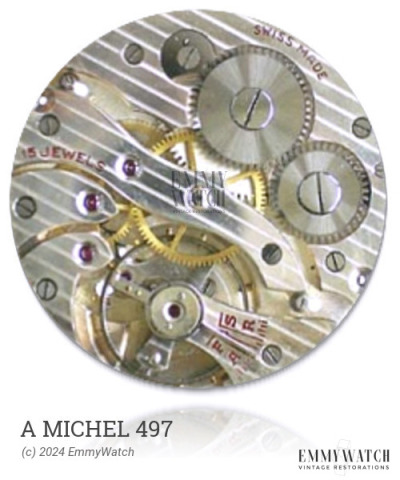

A Michel 497
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.7 mm
Height: 3.5 mm
Hands: 1.40 x 0.70 / 0.21 mm
The A Michel 497 watch movement encompasses various balance staffs, although the differences are typically minor and can be accommodated or adjusted. There are documented differences between several catalogue designations such as 175, 176, 179, 184, 191, 196, 204, 232, and 235, which likely indicates diverse bridge shapes. This movement is manually wound, features a sub-second function, and was predominantly utilized around 1945.
The A Michel 497 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.45 x 0.100 x 320 x 9.0 mm | GR3954 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
