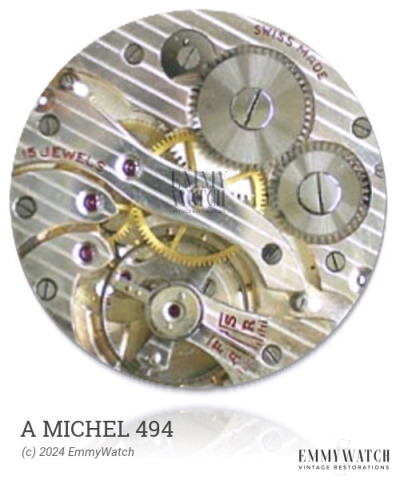

A Michel 494
Ligne: 12'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 26.6 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The A Michel 494 is a manual wind mechanical watch movement with sub second functionality. It was commonly used in watches during the approximate period of 1950. The specific differences between this movement and the A. Schild 1203, 1207, 1263, 1266, 1311, and 1314 are not known.
The A Michel 494 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.110 x 360 x 10.5 mm | GR5158 | Manual | Buy mainspring |
| 1.70 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
