A Michel 485
Ligne: 5.75 x 8.5'''
Jewels: 15/17
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Size: 12.7 x 19.15 mm
Height: 3.9 mm
Hands: 1.10 x 0.60 mm

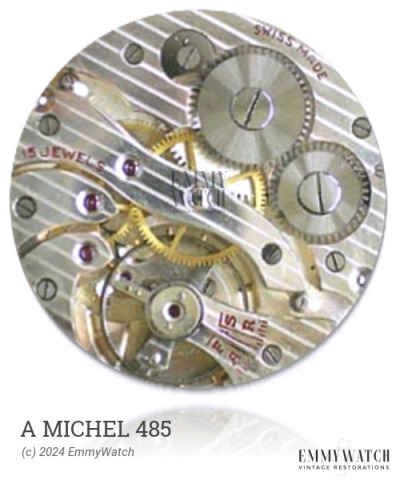

The A Michel 485 watch movement is a manual wind movement that was commonly used around 1945. It shares some similarities with other movements in the 75 series, such as the 751-759 and 7510-7513, although the precise differences between them are not known.
The A Michel 485 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3318 | Ordinary/None | Buy staff |
| 3579 | Incabloc | Buy staff |
| 3197 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.080 x 280 x 8.0 mm | GR5212 | Manual | Buy mainspring |
| 1.80 x 0.080 x 280 x 7.5 mm | GR5212 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
