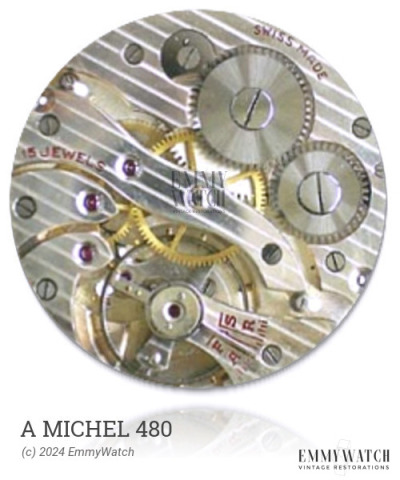

A Michel 480
Ligne: 13'''
Jewels: 15/17
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 29.4 mm
Height: 3.85 mm
Hands: 1.50 x 0.90 / 0.21 mm
The A Michel 480 is a manual wind watch movement that features a sub-second function. This movement was manufactured as part of the Wehrmachtswerk, the Germany Military Movement. It is characterized by an early fixed or later mobile stud carrier design. The specific differences between the 6310 through 6318 variations are unknown, although they are likely to indicate varying bridge shapes within the movement.
The A Michel 480 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.135 x 360 x 11.5 mm | GR5171 | Manual | Buy mainspring |
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
