Mainspring
For Hamilton 302

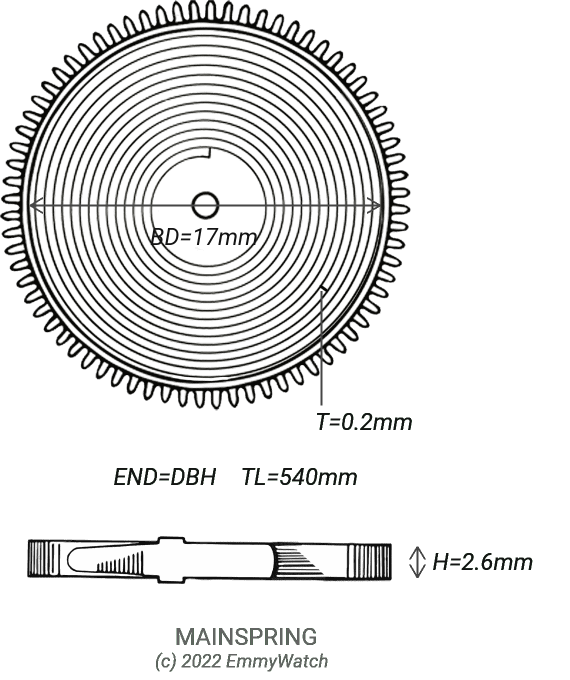

2.60 x 0.200 x 540 x 17.0 mm
Height (H): 2.6mm
Thickness (T): 0.2mm
Total Length (TL): 540mm
Barrel Diameter (BD): 17mm
End Type: DBH
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
| GR Reference # | Mainspring | Buy |
|---|---|---|
| GR6806DBH | 2.60 x 0.205 (0.200) x 540 x 17.0 mm | Buy mainspring |
| GR6802DBH | 2.60 x 0.200 x 560 (540) x 17.5 (17.0) mm | Buy mainspring |
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Citizen 34-7027 | CITIZE CASE REFERENCE | |
| Citizen 4-952332 | CITIZEN CASE | |
| Citizen 4-956150 | CITIZEN CASE | |
| Citizen 4-956150 | CITIZEN CASE | |
| Citizen 4-R01088 | CITIZE CASE REFERENCE | |
| Girard Perregaux 26.29 | 21600 BPH | 10.5 |
| Girard Perregaux 26.29 | 21600 BPH | 10.5 |
| Junghans 33 | 18.5 | |
| Mido 7019 | MIDO CASE REFERENCE | |
| Omega 396.0986 | OMEGA CASE USES CALIBER 1430 | |
| Seiko V400-0560 | SEIKO CASE 712011 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
