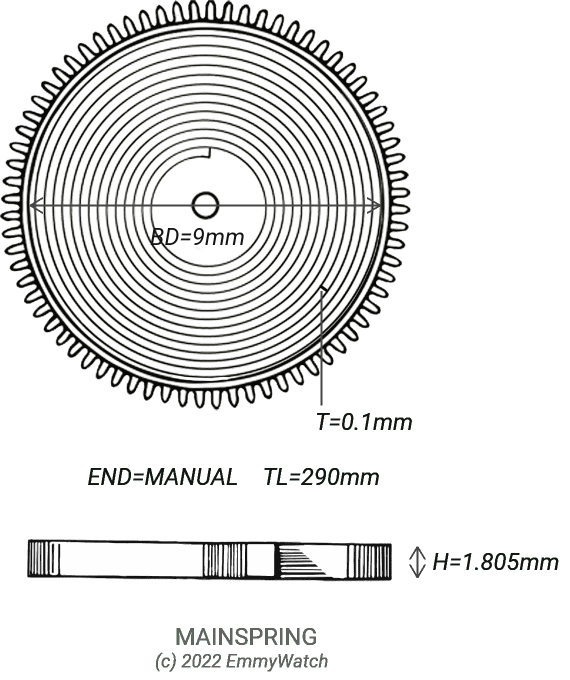

Mainspring
1.81 x 0.100 x 290 x 9.0 mm
Height (H): 1.805mm
Thickness (T): 0.1mm
Total Length (TL): 290mm
Barrel Diameter (BD): 9mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
| GR Reference # | Mainspring |
|---|---|
| GR5266 | 1.80 (1.81) x 0.105 (0.100) x 300 (290) x 9.0 mm |
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Citizen 4-G05602 | CITIZEN CASE | |
| Citizen 4-G05602 | CITIZEN CASE | |
| Lemania 6320 | 18000 BPH PIN LEV TIMER CENTRAL MIN REG SIDE SLIDE BUTTON | 17 |
| Mido 1117P | 18,000 BPH AUTO SWEEP SECOND | 13 |
| Seiko 1N00-0K20 | SEIKO CASE 951201 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to that used by the following movements. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | GR Reference # |
|---|---|---|
| Dugena 550 | 1.80 (1.81) x 0.110 (0.100) x 350 (290) x 10.5 (9.0) mm | |
| Dugena 950 | 1.80 (1.81) x 0.110 (0.100) x 350 (290) x 10.5 (9.0) mm |
No results found for your filter
