Mainspring
For Zenith 2522C

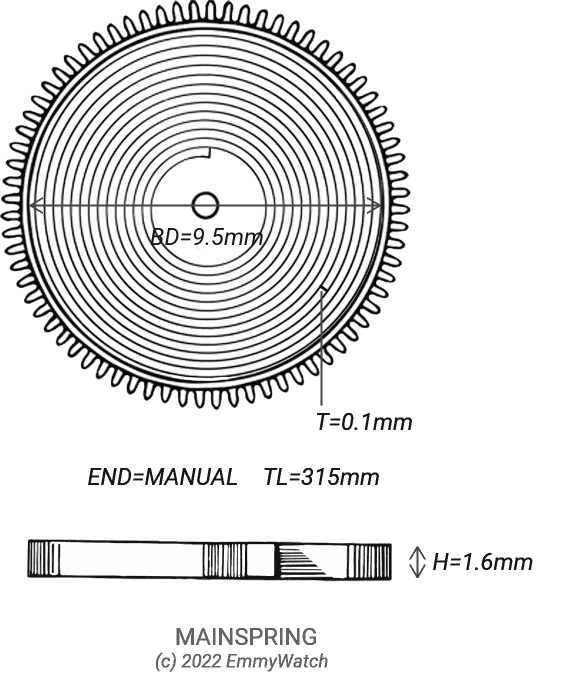

1.60 x 0.100 x 315 x 9.5 mm
Height (H): 1.6mm
Thickness (T): 0.1mm
Total Length (TL): 315mm
Barrel Diameter (BD): 9.5mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Elgin 350 | 21,600 BPH SHOCK DSS | 8.75 |
| Bulova C815106 | CARAVE CASE REFERENCE | |
| Bulova K67 | BULOVA 5BD | |
| Buren 432 | SWEEP SECOND | 10.5 |
| Chelsa 2505 | MECH MVMT | |
| Citizen 32-1702 | CITIZE CASE REFERENCE | |
| Citizen 4-083440 | CITIZE CASE REFERENCE | |
| Citizen 4-092198 | CITIZEN CASE | |
| Citizen 4-400003 | CITIZEN CASE | |
| Seiko 8N40-5000 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Citizen 4-711947 | CITIZEN CASE | |
| Citizen 4-943201 | CITIZEN CASE | |
| Seiko Y481-6380 | PULSAR CASE REFERENCE | |
| Citizen 4-F60714 | CITIZEN CASE | |
| Citizen 4-G03693 | CITIZEN CASE | |
| Citizen 4-L04217 | CITIZEN CASE | |
| Citizen 4-S80059 | CITIZEN CASE | |
| Citizen 4-Y59081 | CITIZE CASE REFERENCE | |
| Citizen 44-9687 | CITIZE CASE REFERENCE | |
| Elgin 350 | 21,600 BPH SHOCK DSS | 8.75 |
| Elgin 635 | ||
| Elgin GRD 345 | AMERICAN POCKET WATCH | |
| ETA 255.487 | QUARTZ ANALOG DSS-MONTH,DAY,DATE HND-MOON PHASE | 10.5 |
| ETA 2823 | 21,600 BPH-DSS-AUTO-CAL-W/CORR | 13 |
| Omega 196.301 | OMEGA CASE USES CALIBER 1430 | |
| Omega 2307 | OMEGA CASE USES CALIBER 300/310 | |
| Omega 511.022 | OMEGA CASE USES CALIBER 620 | |
| Omega 591.277 | OMEGA CASE USES CALIBER 1375 | |
| Seiko 1100-5210 | SEIKO CASE REFERENCE | |
| Seiko 1104-7140 | SEIKO CASE REFERENCE | |
| Seiko 2F70-5450 | SEIKO CASE REFERENCE | |
| Seiko 2Y00-5399 | SEIKO CASE | |
| Seiko 5A70-2A40 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko 7750-5349 | SEIKO CASE REFERENCE | |
| Seiko 7M22-8A20 | SEIKO CASE REFERENCE | |
| Seiko 8223-8009 | SEIKO CASE REFERENCE | |
| Seiko 8522-5070 | SEIKO CASE REFERENCE | |
| Seiko 8J41-6090 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko 8N40-5000 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko L823-4030 | SEIKO CASE REFERENCE | |
| Seiko V251-0190 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko V657-X037 | ||
| Seiko W329-4A50 | SEIKO CASE 951201 | |
| Seiko Y147-8040 | PULSAR CASE REFERENCE | |
| Seiko Y481-6380 | PULSAR CASE REFERENCE | |
| Seiko Y591-5050 | PULSAR CASE REFERENCE | |
| Wittnauer 11E | 28,800 BPH-DSS | 11.5 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
