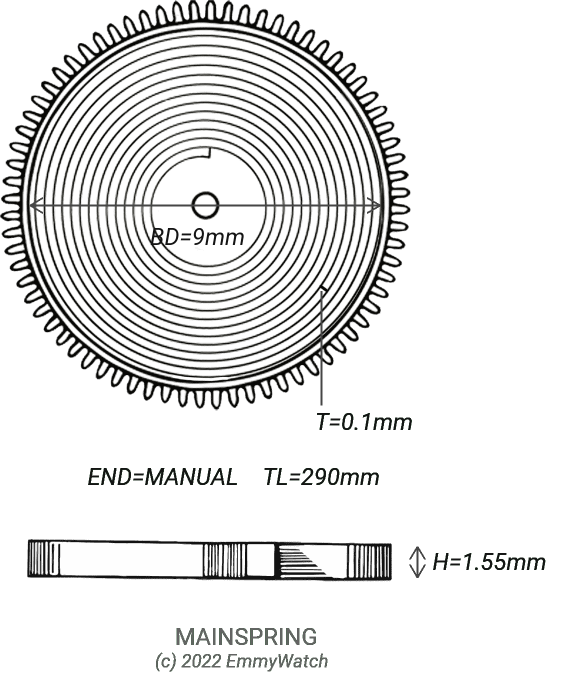

Mainspring
For A. Schild 1130C
1.55 x 0.100 x 290 x 9.0 mm
Height (H): 1.55mm
Thickness (T): 0.1mm
Total Length (TL): 290mm
Barrel Diameter (BD): 9mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Bulova 3387 | BULOVA CASE REFERENCE | |
| Bulova 3730 | BULOVA CASE REFERENCE | |
| Bulova N283 | BULOVA CASE REFERENCE | |
| Citizen 33-6441 | CITIZE CASE REFERENCE | |
| Citizen 4-021924 | CITIZEN CASE | |
| Citizen 4-078977 | CITIZEN CASE | |
| Citizen 4-101821 | CITIZEN CASE | |
| Citizen 4-140770 | CITIZEN CASE | |
| Citizen 4-163028 | CITIZEN CASE | |
| Citizen 4-166311 | CITIZEN CASE | |
| Citizen 4-166434 | CITIZEN CASE | |
| Citizen 4-203798 | CITIZEN CASE | |
| Citizen 4-242734 | CITIZEN CASE | |
| Citizen 4-269179 | CITIZEN CASE | |
| Citizen 4-663837 | CITIZEN CASE | |
| Citizen 4-671708 | CITIZEN CASE | |
| Citizen 4-710053 | CITIZE CASE REFERENCE *CASE W/BZLS DISC* | |
| Citizen 4-799216 | CITIZE CASE REFERENCE | |
| Citizen 4-821921 | CITIZE CASE REFERENCE | |
| Citizen 4-957652 | CITIZEN CASE | |
| Citizen 4-A00328 | CITIZEN CASE | |
| Poljot 2415A | AUTO DSS | 10.75 |
| Citizen 4-E40565 | CITIZE CASE REFERENCE | |
| Citizen 33-6441 | CITIZE CASE REFERENCE | |
| Citizen 4-H02331 | CITIZEN CASE | |
| Citizen 4-S011931 | CITIZEN CASE REFERENCE | |
| Citizen 4-S49496 | CITIZEN CASE REFERENCE | |
| Seiko 8223-6020 | SEIKO CASE REFERENCE | |
| Citizen 4-S66269 | ||
| Citizen 47-9683 | CITIZE CASE REFERENCE | |
| Citizen EC5102 | CITIZE CASE REFERENCE | |
| ETA 2724 | 28,000 BPH-DSS-AUTO-CAL-W/CORR-STOP-SEC | 11.5 |
| ETA 964 | 13.5 | |
| Hamilton 614 | 21600 BPH OFFSET CENTER WHL ADJ STUD KIF AUTO CAL | 7.75 |
| IWC 85 | AUTOMATIC | 10.5 |
| Omega 6520 | OMEGA CASE USES CALIBER 410, 361, AND 371 | |
| Poljot 2415A | AUTO DSS | 10.75 |
| Pulsar VX51D | ||
| Sears A07A A | 19,800 BPH 17JL SWEEP SECOND | 6.75 x 8 |
| Seiko 1600-5600 | SEIKO CASE REFERENCE | |
| Seiko 2A23-0040 | SEIKO CASE REFERENCE | |
| Seiko 2F50-0361 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko 2F70-5840 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko 5126-7070 | SEIKO CASE REFERENCE | |
| Seiko 5E20-5B20 | SEIKO CASE 08/12/98 | |
| Seiko 5P30-5F60 | SEIKO CASE REFERENCE | |
| Seiko 5Y22-8B00 | SEIKO CASE REFERENCE | |
| Seiko 7N29-5020 | SEIKO CASE 08/12/98 | |
| Seiko 7N29-6409 | SEIKO CASE 951201 | |
| Seiko 7N43-9069 | SEIKO CASE 971201 | |
| Seiko 8223-6020 | SEIKO CASE REFERENCE | |
| Seiko 8F32-001A | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko V247-X001 | PULSAR CASE MODEL PEB04AX | |
| Seiko W309-5070 | PHASAR CASE REFERENCE | |
| Seiko W620-4360 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko W680-4010 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko Y520-0A80 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Seiko Y562-8109 | PULSAR CASE REFERENCE | |
| Wittnauer 5D2 | LADIES 18,000 BEATS FRICTION INCABLOC | |
| Zodiac 57 | 11.5 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
