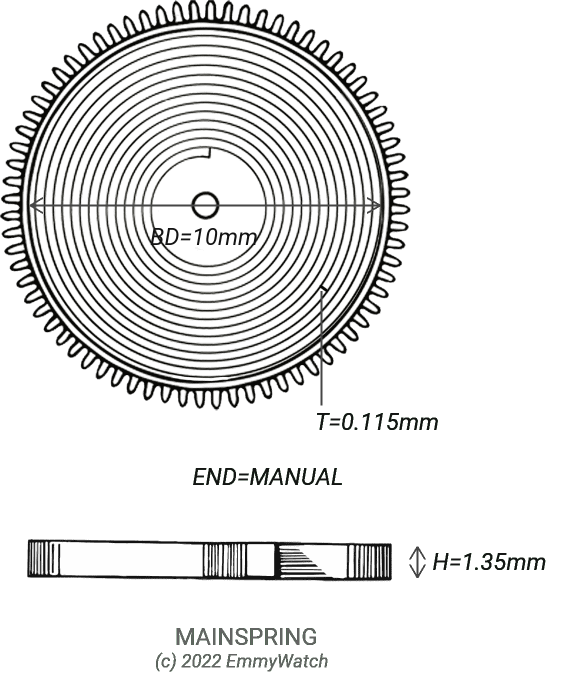

Mainspring
1.35 x 0.115 x 10.0 mm
Height (H): 1.35mm
Thickness (T): 0.115mm
Barrel Diameter (BD): 10mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
| GR Reference # | Mainspring |
|---|---|
| GR3515 | 1.35 x 0.120 (0.115) x 340 x 10.0 mm |
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Seiko 7800-5030 | SEIKO CASE REFERENCE | |
| Seiko 8223-5200 | SEIKO CASE REFERENCE |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to that used by the following movements. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | GR Reference # |
|---|---|---|
| Jaeger Lecoultre 470 | 1.30 (1.35) x 0.130 (0.115) x 11.5 (10.0) mm | |
| Jaeger Lecoultre 488 | 1.30 (1.35) x 0.130 (0.115) x 11.5 (10.0) mm |
No results found for your filter
