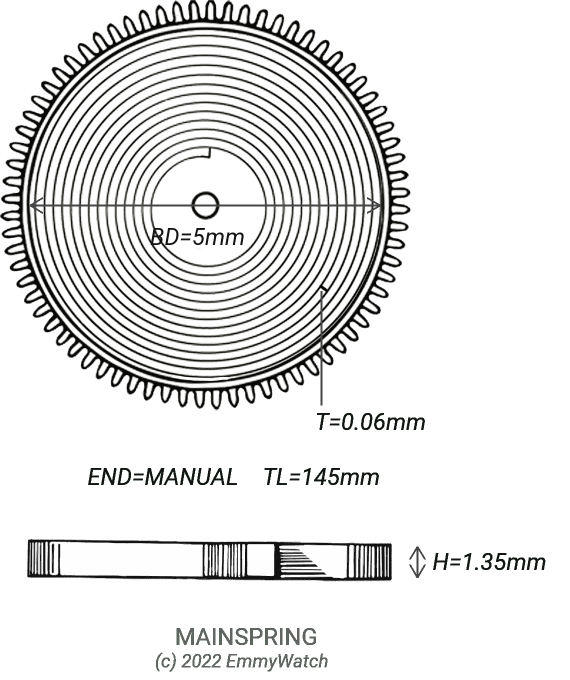

Mainspring
1.35 x 0.060 x 145 x 5.0 mm
Height (H): 1.35mm
Thickness (T): 0.06mm
Total Length (TL): 145mm
Barrel Diameter (BD): 5mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
| GR Reference # | Mainspring |
|---|---|
| GR3460 | 1.35 x 0.060 x 160 (145) x 5.0 mm |
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Bulova C877036 | BULOVA CASE REFERENCE | |
| Buren 1001 | SW. SEC. AUTO CAL | 12.5 |
| Citizen 4-226607 | CITIZE CASE REFERENCE | |
| Citizen 4-241843 | CITIZEN CASE | |
| Citizen 4-312767 | CITIZEN CASE | |
| Citizen 4-321227 | CITIZEN CASE | |
| Citizen 4-G11491 | CITIZEN CASE | |
| Citizen 42-3530 | CITIZE CASE REFERENCE | |
| Master Time 110 | 6.75 x 8 | |
| Omega 396.0861 | OMEGA CASE USES CALIBRE 1620 | |
| Rolex 1036 GMT | AUTOMATIC SWEEP SECOND | 12.5 |
| Seiko 1230-5319 | SEIKO CASE REFERENCE | |
| Seiko V233-5550 | ||
| Standard 969N | 18,000 BPH SHOCK DSS ADJ STUD HOLDER | 11.5 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to that used by the following movements. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | GR Reference # |
|---|---|---|
| Dugena 2100 | 1.35 x 0.070 (0.060) x 220 (145) x 6.5 (5.0) mm | |
| International Durowe 1977 | 1.35 x 0.070 (0.060) x 220 (145) x 6.5 (5.0) mm |
No results found for your filter
