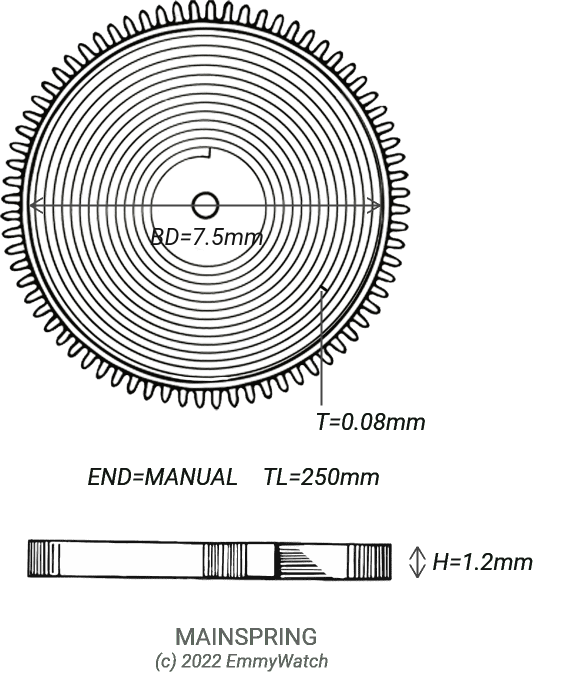

Mainspring
1.20 x 0.080 x 250 x 7.5 mm
Height (H): 1.2mm
Thickness (T): 0.08mm
Total Length (TL): 250mm
Barrel Diameter (BD): 7.5mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Bulova C8486 | BULOVA CASE REFERENCE | |
| Citizen (HI-MODE) | 21 JL C.S. SHOCK | 4.75 |
| Wittnauer WD3204-5K | WITTNA CASE REFERENCE | |
| Citizen 4-280571 | CITIZEN CASE | |
| Citizen 4-321499 | CITIZE CASE REFERENCE | |
| Seiko 2220-0570 | SEIKO CASE REFERENCE | |
| Felsa 366 | 11.5 | |
| Seiko 2220-0570 | SEIKO CASE REFERENCE | |
| Omega C2634 | BULOVA CASE REFERENCE | |
| Seiko 2220-0570 | SEIKO CASE REFERENCE | |
| Seiko L423-5030 | SEIKO CASE REFERENCE | |
| Wittnauer WD3204-5K | WITTNA CASE REFERENCE | |
| Zenith 45.3 | 28800 BPH-CENT SEC STOP-CALD W/CORR | 11.5 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
