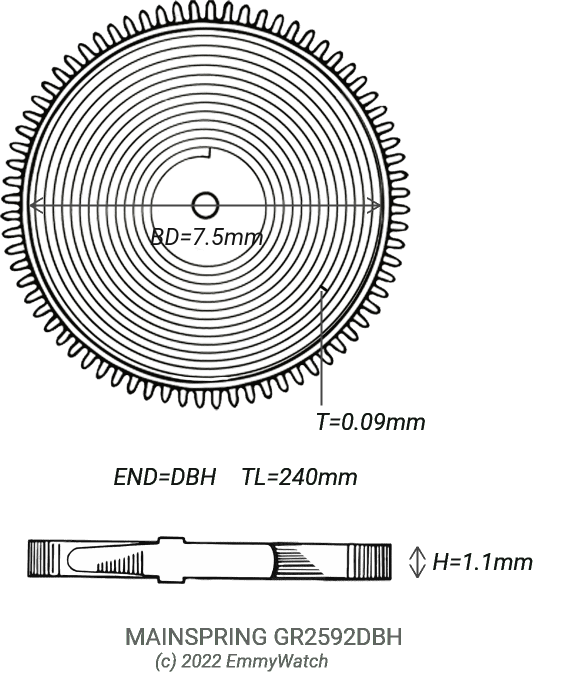

Mainspring
1.10 x 0.090 x 240 x 7.5 mm
GR Reference #: GR2592DBH
Height (H): 1.1mm
Thickness (T): 0.09mm
Total Length (TL): 240mm
Barrel Diameter (BD): 7.5mm
End Type: DBH
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Citizen 4-363043 | CITIZEN CASE | |
| Orient A0522 | QUARTZ ANALOG 2 JL DSS | 5.5 x 7 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | Buy |
|---|---|---|
| IWC 96 | 1.10 x 0.075 (0.090) x 280 (240) x 8.0 (7.5) mm | Buy mainspring |
No results found for your filter
