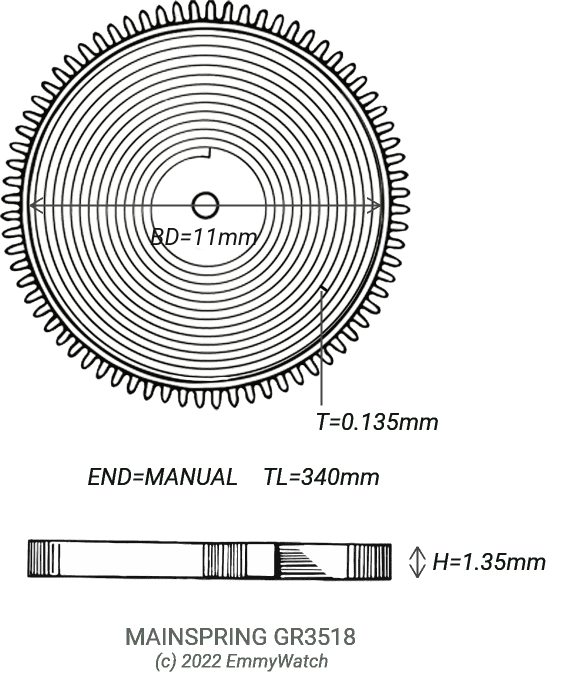

Mainspring
1.35 x 0.135 x 340 x 11.0 mm
GR Reference #: GR3518
Height (H): 1.35mm
Thickness (T): 0.135mm
Total Length (TL): 340mm
Barrel Diameter (BD): 11mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Omega 1861 | NEW VERSION OF CAL 861 | |
| Bulova C827027 | BULOVA CASE REFERENCE | |
| Citizen 4-753739 | CITIZEN CASE | |
| Citizen 4-K12461 | ||
| Citizen 4-C70091 | CITIZEN CASE | |
| Citizen 4-K12461 | ||
| Citizen 4-L09057 | CITIZEN CASE | |
| Citizen 65-2255 | CITIZE CASE REFERENCE | |
| Citizen AD-5072 | CITIZE CASE REFERENCE | |
| Omega 17153 | OMEGA USES CALIBER 440 | |
| Omega 1861 | NEW VERSION OF CAL 861 | |
| Rolex 10 1/2H | ROLEX MECHANICAL MVT | |
| Rolex 6263-8 | ROLEX CASE REFERENCE | |
| Seiko 2P20-0070 | SEIKO CASE REFERENCE | |
| Seiko V232-0230 | SEIKO CASE REFERENCE | |
| Seiko Y100-4060 | SEIKO CASE. | |
| Tissot 3340 | QUARTZ-ANALOG | 5.5 x 6.75 |
| Vulcain 64 | 16 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to that used by the following movements. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | GR Reference # |
|---|---|---|
| ETA 2852 | 1.30 (1.35) x 0.122 (0.135) x 440 (340) x 10.5 (11.0) mm | |
| ETA 2858 | 1.30 (1.35) x 0.122 (0.135) x 440 (340) x 10.5 (11.0) mm |
